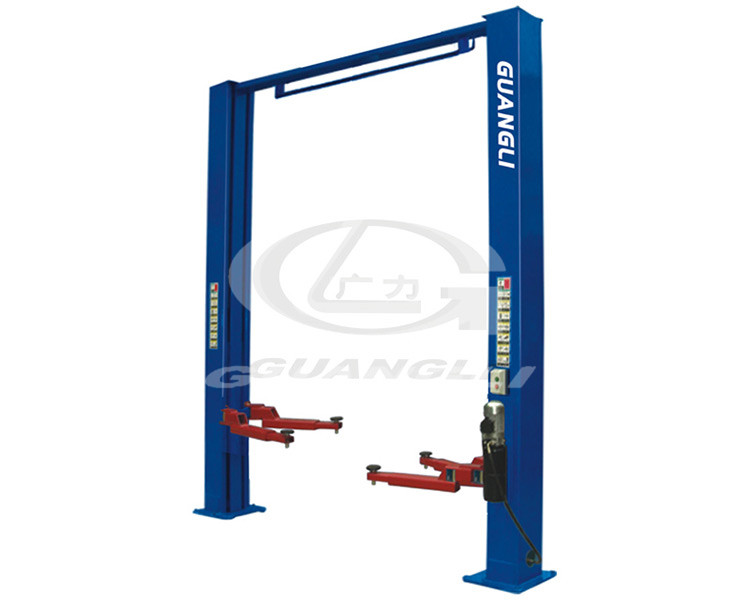

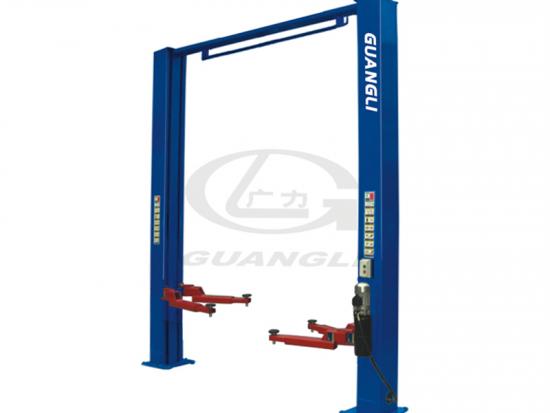

Durable Two Post Gantry Auto Lift GL-4.5-2F1

GuangLi Car Lift:

GL-4.5-2F1 Two post gantry auto lift features:

Hydraulic power driving to elevate;

the insurance instrument for each post;

Gantry without ground floor structure, ensuring the ground without obstacle;

The posts and crossbeam formed & molded as a whole at a time, Good rigidity;

With double insurance device of self-holding, rising by chains and balancing through steel ropes;

Unhooking automatically when ascending, locking automatically when descending, safe & reliable;

Technology of powder coated applied to the whole, with the anticorrosive capacity and good surficial performance
Standard configuration: 380V Chinese pump;

Having the top-limitation safety stem, before the top of car touching the beam, the stem cut down the control system of motor automatically to protect the car.

Technical Specifications

Max.lifting weight(Kg) 4500

Max.lifting height(mm) 1900

Voltage(V) 380

Frequency(Hz) 50

Motor power(Kw) 2.2

Remark Two-Cylinder

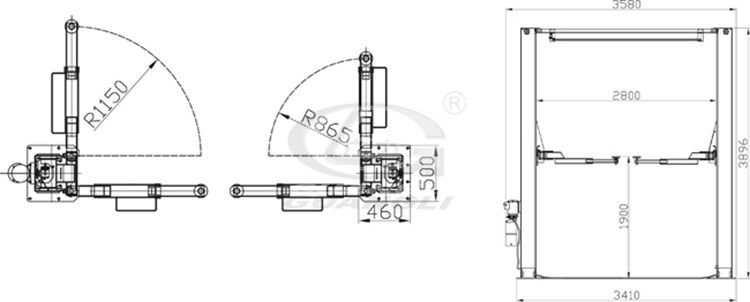

Outline Drawing (unit:mm)
