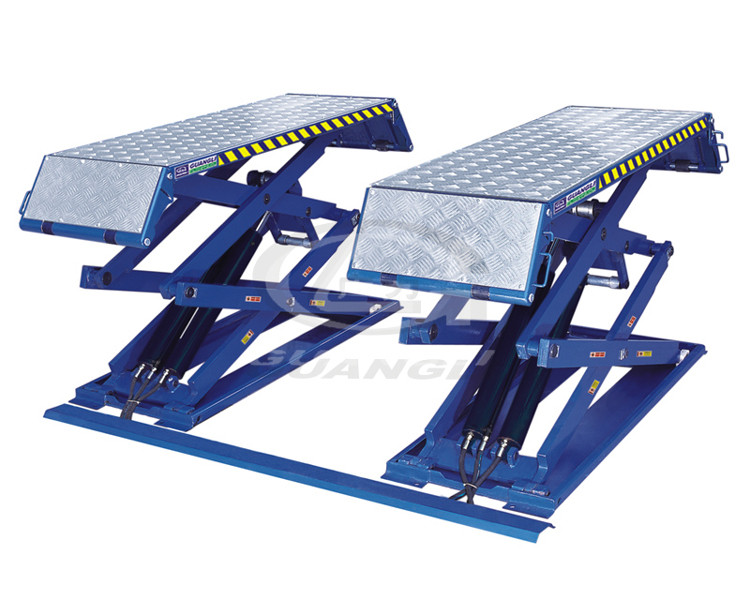

Thin Scissor Auto Lift GL1004

GL1004 Thin Scissors Lift Feartures:

Hydraulic self lock safety system

Lift heigh is adjustable from 115mm-1870mm

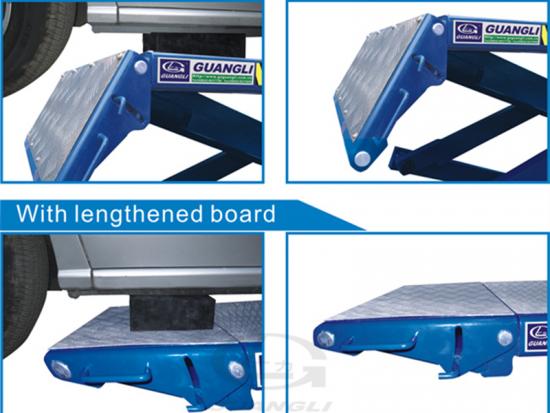

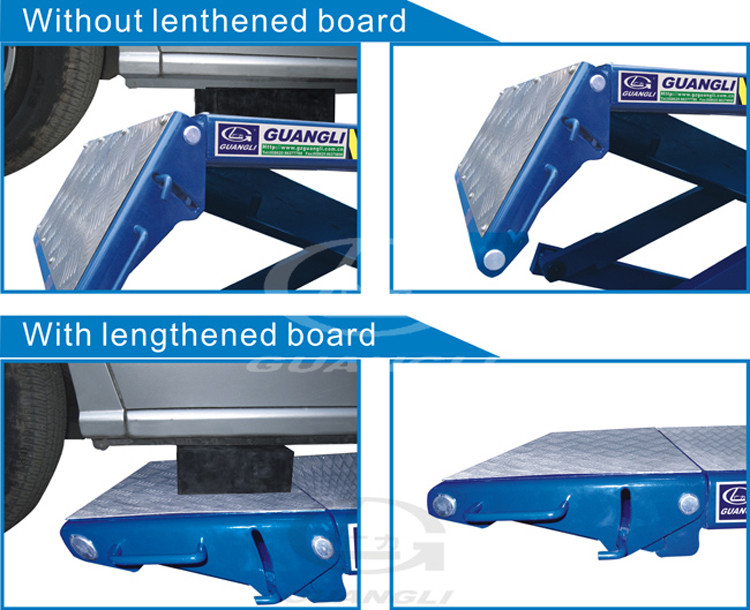

The lengthen board can be used for ramp and loading

The work platform is adjustable from 1440mm-2020mm

Double parallel connection cylinder, it is synchronized by adjustment

Lift is super thin, the original height is 115mm, no need for hiding basement

Standard: Chinese pump and 380V motor; option: Import pump or 220V motor.

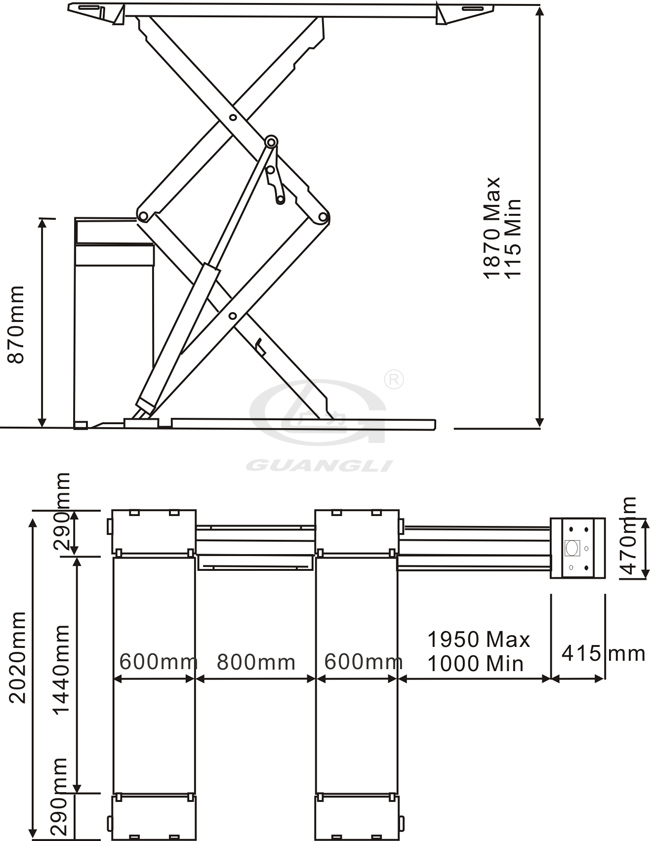

Vehicle Lift Technical Specifications

Lifting weight(Kg) 3000

Lifting height(mm) 115-1870

Pneumatic 6-8Kg/cm2

Voltage(V) 380

Motor power(Kw) 2.2
