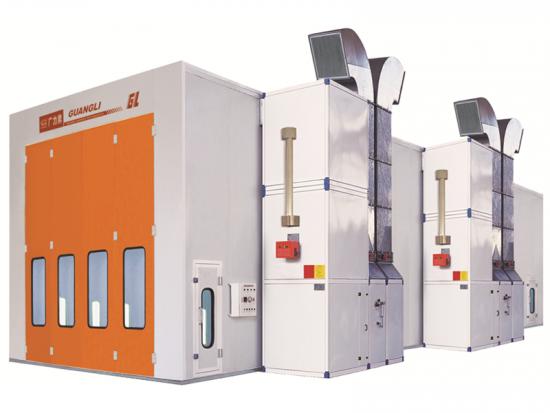

GL3000-C1 Reliable Truck/Bus Spray Paint Booth Room
Main room & basement:
-Wall panel: sandwich style, δ=75mm, rock wool available as required.
-Basement: concrete structure made by customers, 2 rows of grids, 3d lifts as optional.
-Door: 4 pieces of front door without aluminum side cover. 2 pieces of emergency door with pressure lock.
Fans & filters:
-Two 11 kw intake fans and two 11 kw exhaust fans.
-2 pieces of floor filter and 2 pieces of air mouth filter.
Lighting & ducts:
-Upper light: 20 sets, 4*18w per set. side lights: 16sets, 4*18w. LED
-Two sets of exhaust/intake ducts, 5m straight, one 90° bend, and one 60° bend
each. two sets of chimney, 5m straight and 2 small bends.
-2 sets of manual VCD exhaust/intake dampers, electrical VCD as optional.
-Spraying/baking transition damper, automatically air controlled.
Heating & control system:
-Heat ex-changer: stainless steel. 2 units of RIELLO RG5S/G20S burners.
-Roof filter: 16 pieces of filter, mounted above support frame, which is made of steel and powder coated.
-Control box: imported components, overload, overheat, phase-lacking,
-phase-locking protection, engine Y star-delta start.
-Automatically stop when preset time is up.Constant temperature spraying.
-Environmental filter :either M style or drawer style active carbon equipment can be adopted.
| Technical Specifications | GL3000-C1 |
| External size(m) | 15.2×6.7×5.0 |
| Internal size(m) | 15.0×5.0×4.4 |
| Door width(m) | 4.0 |
| Door height(m) | 4.0 |
| Air flow (m3/h) | 64000 / 72000 |
| Inside no-load air speed(m/s) | 0.25-0.3 |
| Power (kw) | 50 |
| Temperature(Degrees Celsius) | 60-80 |
| Water-based device | As option |
| Vehicle suited | Truck/Bus |
