Guangli standard spray paint booth cabins 3m wide insulated sheet metal floding doors assemblies with built in personnel access doors and large observation windows for high visibility.
Description | GL6-CE Auto Spray Booth/Paint Room for Car Body Repair
Our high performance spray paint booths offer your shop or facility an easy to install, efficient and effective solution regardless of whether you are using a solvent or water-based coating.
Main body & basement:
Wall panel: sandwich style, δ=50mm, rock wool. (Polystyrene is optional)
Basement: steel structure, full grids，ramp: 2 pcs of grids.
Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
Fans & ducts:
One 11kw intake fan and one 11kw exhaust fan.
4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
Electrical VCD. one pressure meter.
Spraying/baking transition damper, automatically air controlled.
Fire protection equipment: 1 set, the inductor control closed; energy-saving equipemnt:1 set.
Burner & filter:
Heat exchanger: stainless steel. Riello/ RG5S burner.
Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
5 pcs of floor filter and 2 pcs of air mouth filter.
LED light ＆ Control box:
Upper light: 10 sets, 4*18w per set. side lights: 8sets, 4*18w. LED LIGHT
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection,
engine Y/△ start.
Automatically stop when preset time is up.
Constant temperature spraying.

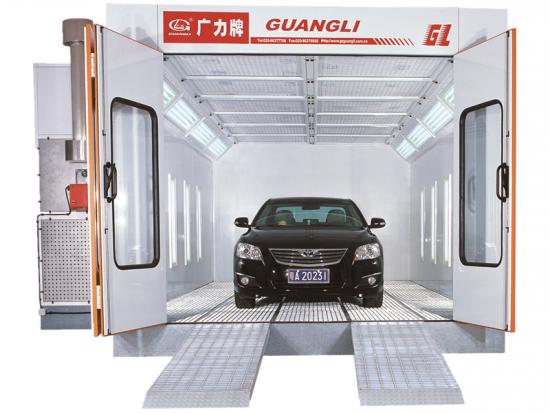

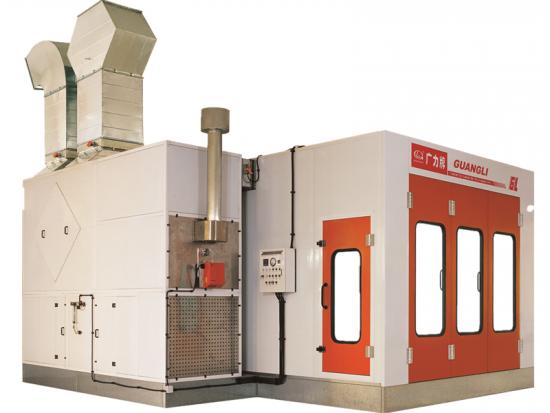

GL6-CE Spray Booth Show
Technical Specifications
GL6-CE
External size(m)(LxWxH)
7.0×5.6×3.5
Internal size(m)(LxWxH)
6.9×3.9×2.7
Door width(m)
3.0
Door height(m)
2.66
Air flow (m3/h)
30000
Inside no-load air speed(m/s)
0.3-0.5
Power (kw)
25
Vehicle suited
Saloon car
Water based device
As optional
Environmental protection Device
As optional
