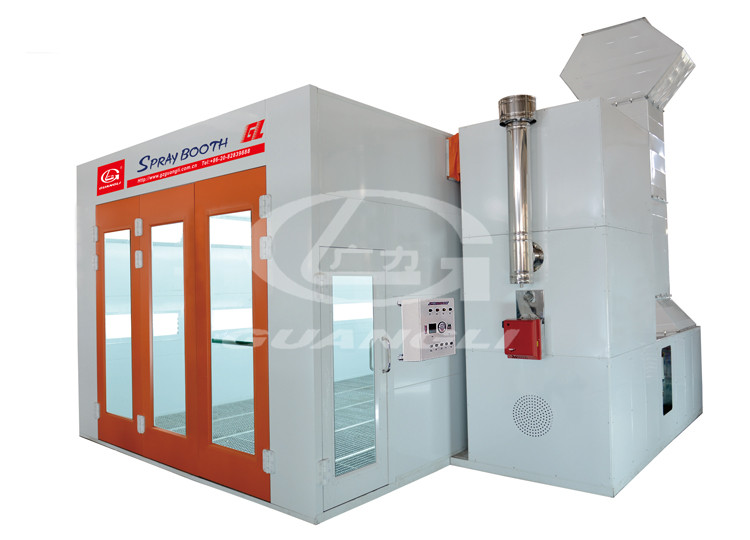

Vehicle Spray Booth GL-A1

Description | GL-A1 Serial Spray Booth

For the best in superior quality, high-performance paint spray booths that will handle the most diverse of coating and finishing applications, our paint spray booths are available with different airflows – crossdraft, modified crossdraft, side downdraft, full downdraft, and open face styles.

Specification:

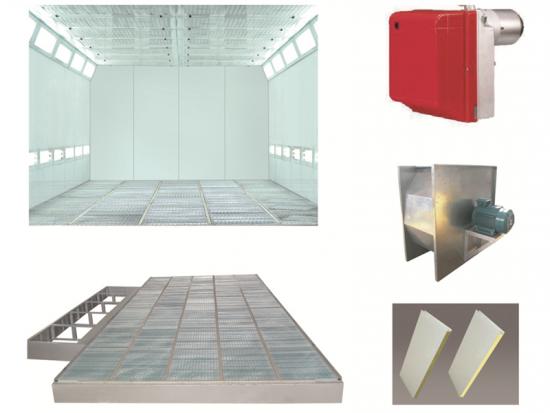

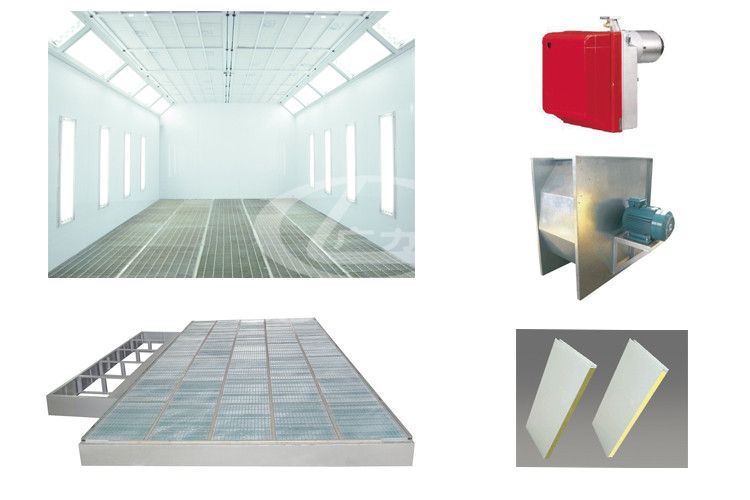

Body & basement:

Wall panel: thickened colour steel plate, fireproof  heat insulation materials.

wall panel horizontal type installation, Polystyrene as option.
Basement:  steel structure, 4 tons rated load.

Fans
Intake Fan: total air flow volume is 24000m³/h.
Spraying/baking transition damper: cylinder driving mechanism.

Burner & filter:
Heat exchanger: made of stainless steel,  cycling heating.
Burner: RIELLO /RG5S.
Roof filter: Punching type network installation.

LED light & control box:
Upper light: 10sets, Side light: 7 sets.
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection.
Spraying:  with functions of constant temperature spraying.
Environmental filter: activate carbon as option.
